VoD Unit on RG59 Coaxial Cable Box

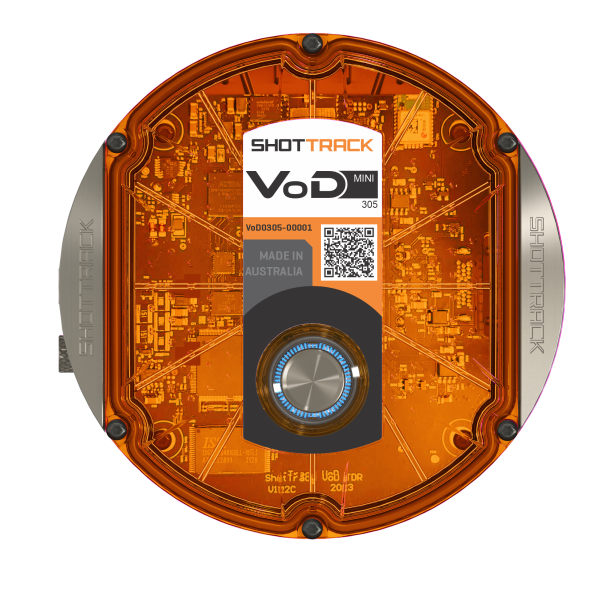

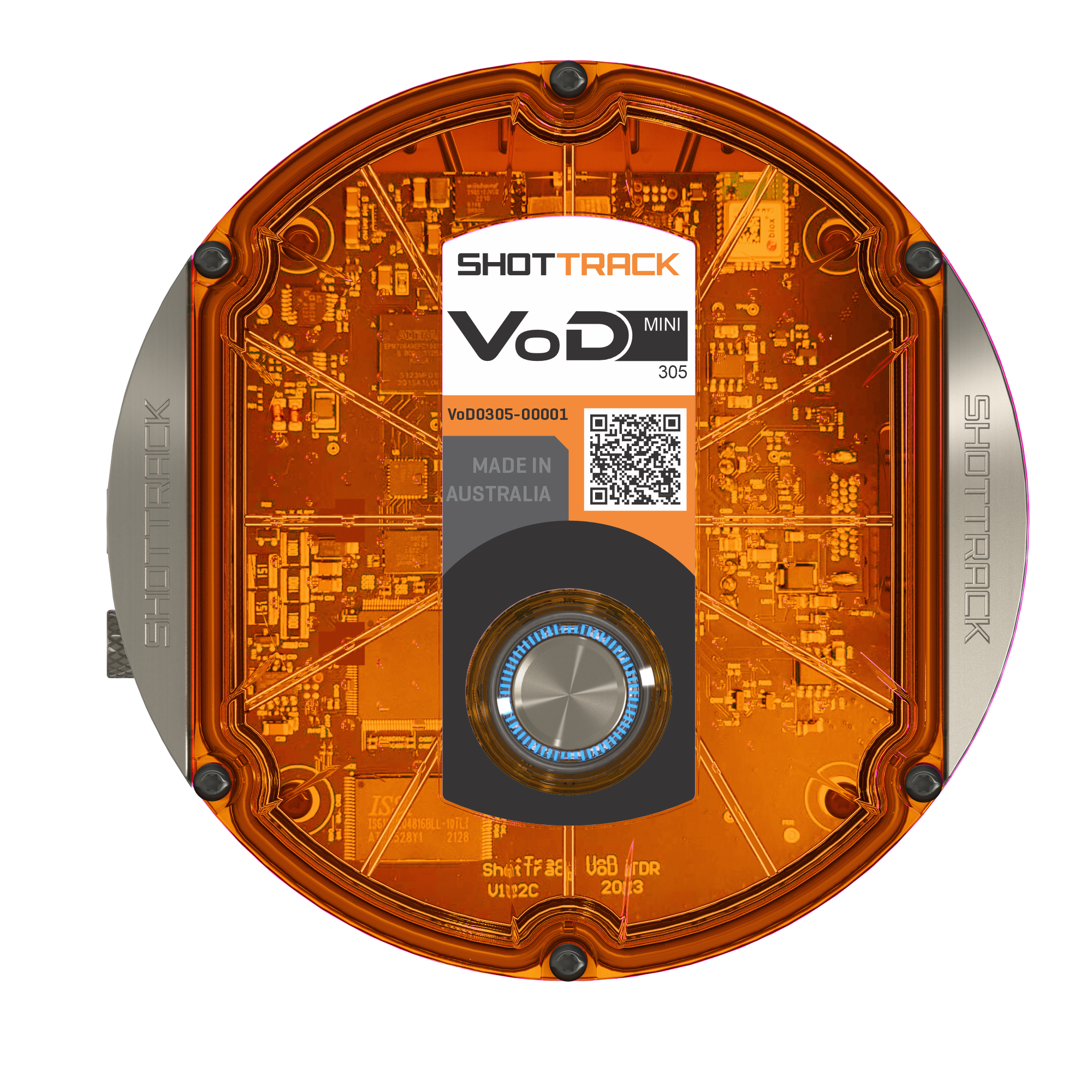

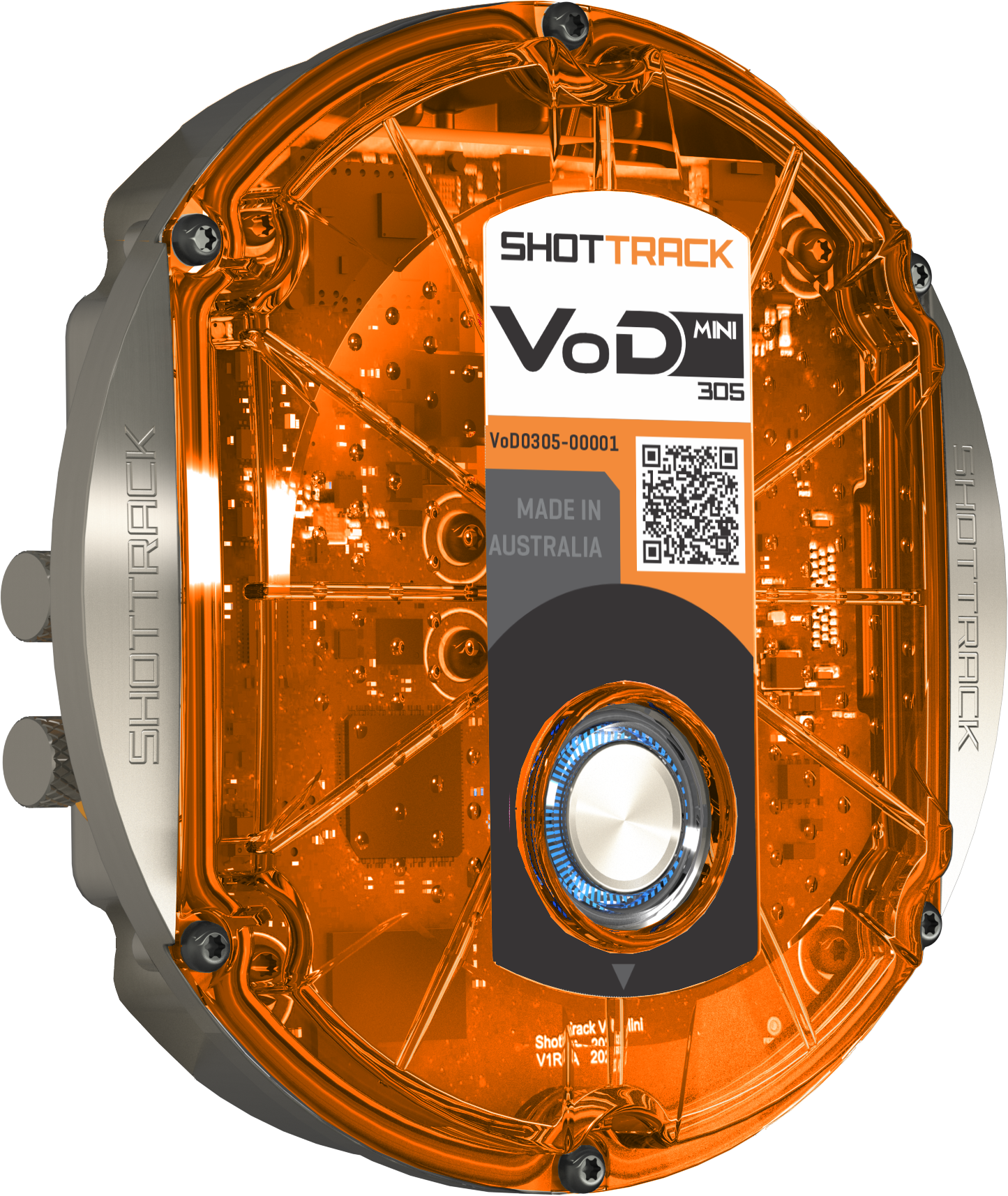

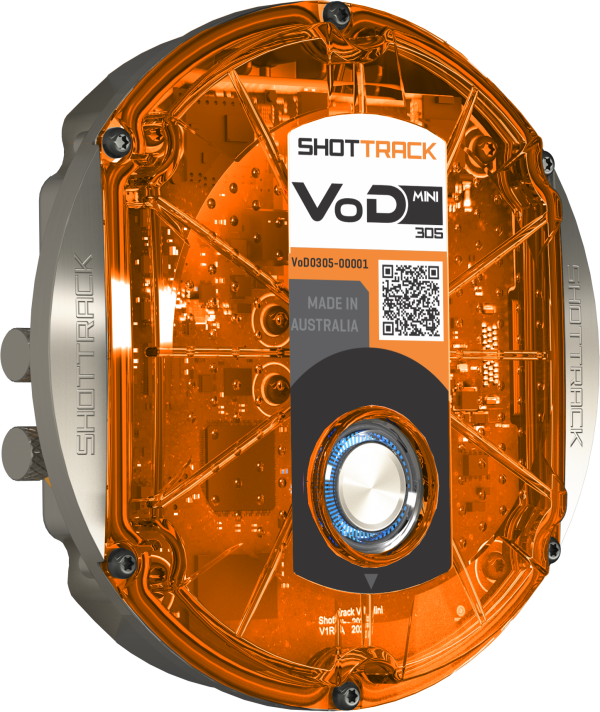

ShotTrack VoD-305-Mini

  1. Introducing the ShotTrack VoD-Mini-305—our premier Velocity of Detonation (VoD) monitor that exemplifies the forefront of VoD monitoring technology. Equipped with an impressive 256 KHz sample rate and a precise nominal resolution of 90 picoseconds, the VoD-Mini-305 redefines accuracy in the field.

Encased in a rugged, IP68-rated housing, this compact device merges durability with simplicity, offering single-button operation for maximum ease of use. It features advanced GPS-synchronized timestamps and integrates flawlessly with our proprietary ShockAi App, enhancing its operational capabilities.

Discover advanced VoD measurement with the ShotTrack VoD-Mini-305, a device that not only meets but exceeds industry expectations with its power, precision, and portability.

GET AN INSTANT QUOTE - SIGN UP HERE

To view our product pricing, submit a quotation request and purchase our products you must create an account.

Try our vibration calculator
  • Channels: Single channel time-domain reflectometer

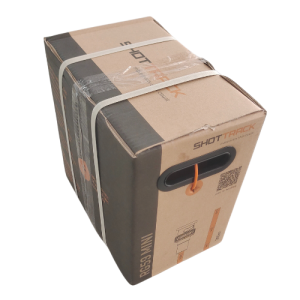

  • Consumable Compatibility: Utilizes standard co-axial cable
  • Maximum Cable Length: Up to 305 meters
  • Pulse Output: Negative 5 volts
  • Sampling Rate: 256 KHz (3.9 µS per sample)
  • Operational Duration: Over 10 hours of continuous run time
  • Dimensions: 133mm in diameter, 36mm in height
  • Weight: 450 grams
  • User Interface: Multi LED status indicator for power on/off status
  • Resolution: Nominal accuracy of 90 picoseconds
  • Measurement Range: Initial dead zone covers the first 50 meters of cable
  • Timing Accuracy: Equipped with GPS-synchronized timing
  • Durability: Enclosed in an IP-68 rated waterproof and dustproof case
  • Application: Ideal for VoD measurement in both on-site and research environments

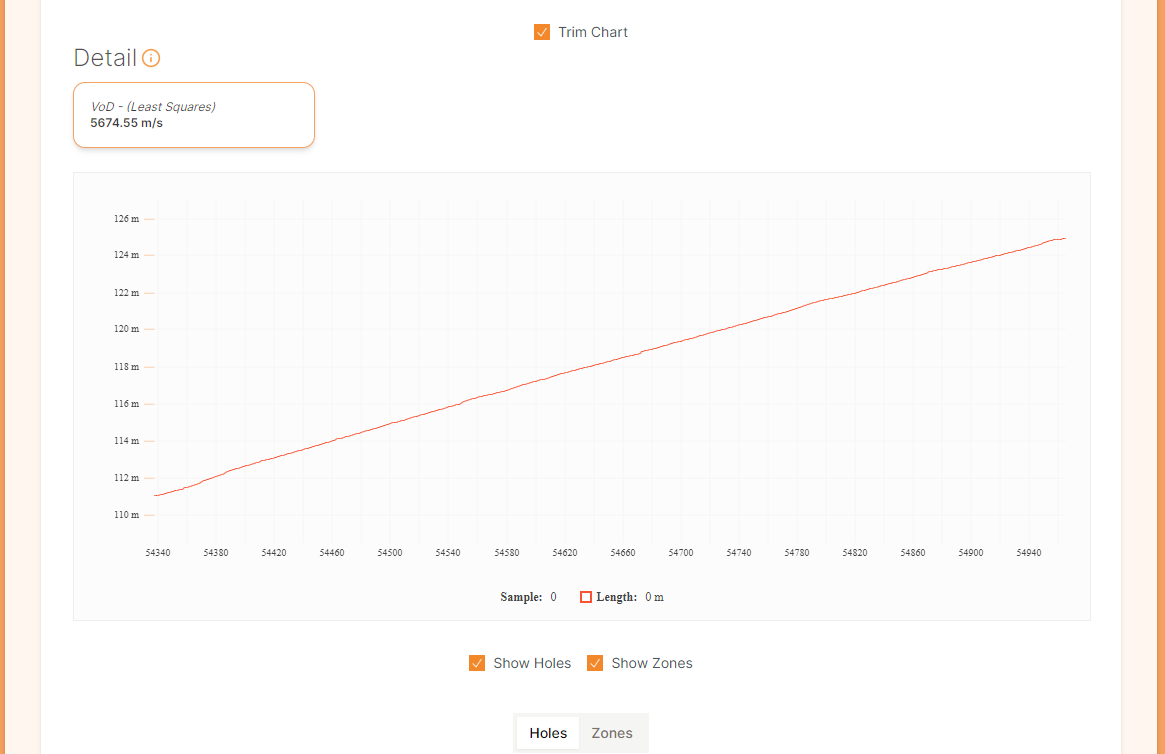

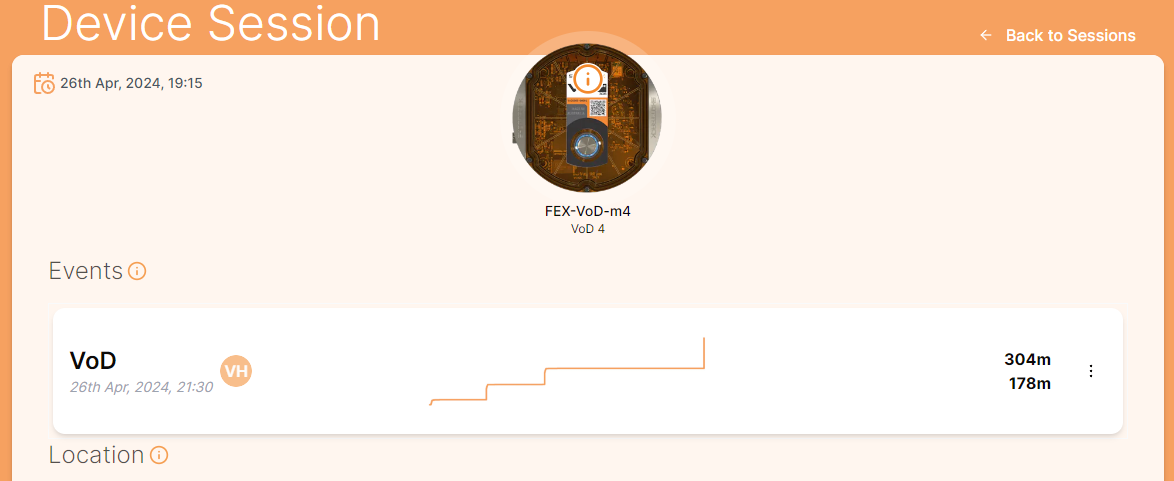

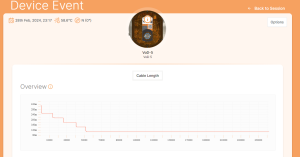

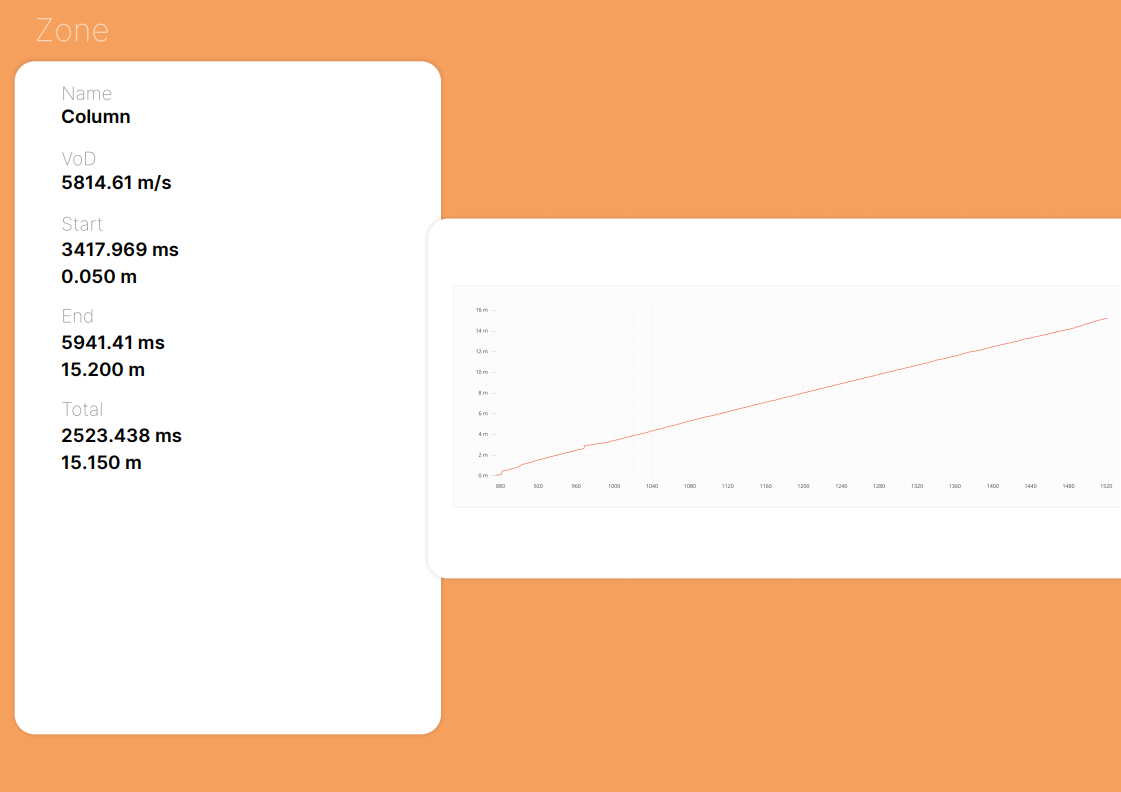

  • Software Integration: Compatible with the ShockAi Control App for enhanced functionality
  • Ease of Use: Simplified operation with a single-channel design.
  • Cost-Effective Consumables: Uses readily available and affordable standard co-axial cables.
  • Compatibility: Accommodates standard reel sizes and is electronic detonator compliant.
  • Rapid Sampling: High sample rate minimizes data loss and captures finer details faster.
  • Portability: Compact and easy to transport to any site.
  • Lightweight Design: Easy to handle at just 450 grams.
  • User-Friendly Indicators: Features Bluetooth connectivity and visual indicators for SET and triggering.
  • Precision Measurement: Exceptionally high accuracy with a nominal resolution of 90 picoseconds.
  • Extensive Measurement Capability: Utilizes a large portion of the cable effectively.
  • Accurate Timing: Offers precise GPS-synchronized timing and cross-referencing.
  • Durability: Built to be rugged and weatherproof for use in harsh environments.
  • Flexibility: Versatile enough for both research and practical field applications.
  • Convenience: Supports both in-office and on-site data downloading.
  • Smart Features: Equipped with automatic cable detection and a SET feature for enhanced operational efficiency.



  • ShotTrack VoD-305 Mini: Main device
  • Protective Black Carry Case: For secure transportation
  • Charger: To ensure your device is always ready for use
  • USB-C Cable: For device charging
  • Plug-in BNC Connector: Facilitates easy connectivity
  • Certificate of Origin: Included for FTA countries to verify authenticity
